FR4 Circuit Board Cutting Machine Assembly, PCB Board Cuttingg Machine in China

Place of Origin : Jiangsu, China

Brand Name : YUSH

Model Number : YSVC-2

MOQ : 1 set

Price : $3,800 / set

Weight : 165kg

Max length : 330mm

Cutting thickness : 0.3-3.5mm

Voltage : 110V/220V

Working air pressure : 0.5-0.7Mpa

Size : 620*230*400mm

Core components : PLC, Motor

Max component height : 70mm

Min component distance : 0.5mm

Drive type : Pneumatic

Control type : Electromagnetic valve

Knife type : Straight

Adjustment mechanism : Adjusting knob

Operation method : Foot pedal

Material compatibility : FR4 PCB

Contact Now

FR4 Circuit Board Cutting Machine Assembly
YSVC-330 and YSVC-220 models available for precise PCB board depaneling
Machine Overview
Our FR4 circuit board depaneling machine offers easy maintenance and operation, capable of safely shearing thin PCBs down to 0.3mm thickness. The pneumatic drive unit ensures vibration-free shearing process for optimal results.
Technical Specifications
Maximum Length 330mm (Custom sizes available)
Cutting Thickness 0.3-3.5mm
Voltage and Power 110V/220V
Working Air Pressure 0.5-0.7Mpa
Machine Size 620×230×400mm
Weight 165kg
Key Features
  • Pneumatically driven with electromagnetic valve control
  • Vibration-free shearing process due to pneumatic drive unit
  • Safe shearing of PCBs with sensitive SMD components and capacitors
  • Foot pedal operation for convenient shearing control
  • Accommodates components up to 70mm near V-groove
  • Minimum 0.5mm clearance between V-groove and electronic components
  • Easy gap adjustment via front-mounted knob
All-Purpose Straight Knife PCB Separator
This pneumatically driven, electrically controlled straight knife separator is designed to carefully separate pre-scored panel boards without bending or tension stress. The specialized knife design safely separates boards with high components placed close to edges, using wedge-shaped knives to cut within the groove for stress-free separation of boards under 1mm thickness.
Advanced Performance Features
  • Vibration-free operation prevents damage to precision PCBs
  • Easy board insertion gap adjustment via top-mounted knob with low friction design
  • Adjustable lower knife height with separate front and rear adjustment
  • No thin plates required after knife re-sharpening
  • Simple operation and maintenance suitable for unskilled personnel

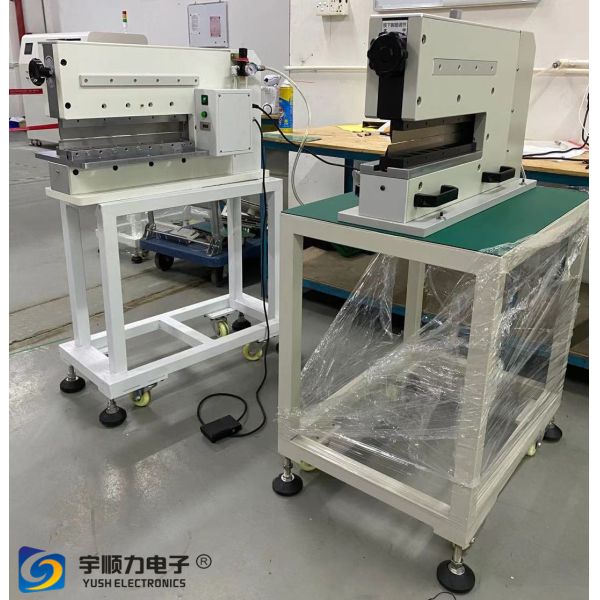

FR4 Circuit Board Cutting Machine Assembly, PCB Board Cuttingg Machine in China FR4 Circuit Board Cutting Machine Assembly, PCB Board Cuttingg Machine in China
